Testeur de point d'éclair à godet ouvert pour laboratoire

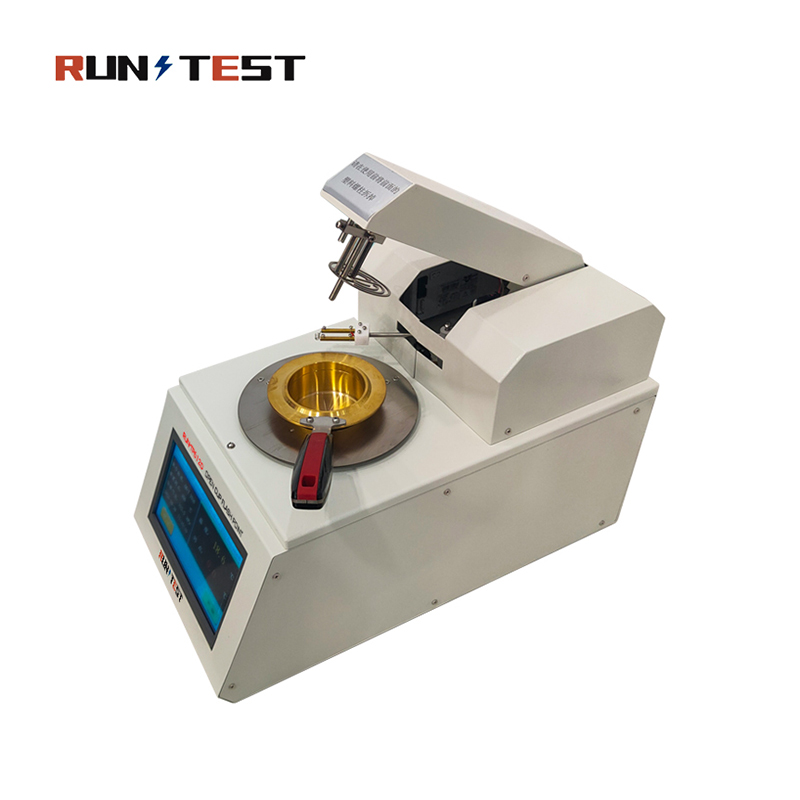

Insulating Oil Open Cup Flash Point Tester Laboratory Flash Point Measuring Instrument
Le Open-Cup Flash Point Tester measures the mixture gas formed by the test oil vapor and the surrounding air after the petroleum product sample is heated in a closed oil cup. When a flash fire occurs in contact with the flame, the lowest temperature of the test oil (that is the flash point).
Specification of this Open-Cup Flash Point Tester
| Affichage | 480×272 LCD |
| Plage de mesure de la température | Room temperature～370.0℃ |
| Electrical indicator error | ±2℃ |
| Résolution | 0.1℃ |
| Répétabilité | ≤8℃ |
| Reproducibility | ≤17℃ |
| Temperature rise rate | GB/T 3536(ISO 2529:2000) standard |
| Ignition method | electronic ignition and gas flame |
| Température de fonctionnement | 10℃～40℃ |
| Humidité relative | 30%～80% |
| Alimentation électrique | AC 220V±22V 50Hz±5Hz; |
| Overall power consumption | ≤600W |
| Overall dimensions | 350×300×300 mm |
| Poids de l'instrument | 21 kg |
Features about the Oil Flash Point Apparatus
1.480×272 large-screen color LCD display, full Chinese man-machine interaction interface, unmarked keyboard and prompt menu oriented input for pre-settable temperature, atmospheric pressure, test date and other parameters.
2.Simulation tracking, temperature rise and test time display and Chinese operation prompts.
3.Automatic correction of the impact of the atmospheric pressure on the test and calculation of the corrected values.
4.Differential detection and automatic correction of system deviation.
5.Automatic completion of scanning, ignition, detection and data printing and automatic rise and fall of test arm.
6.Automatic heating stop and forced cooling in case of excessive temperature.
