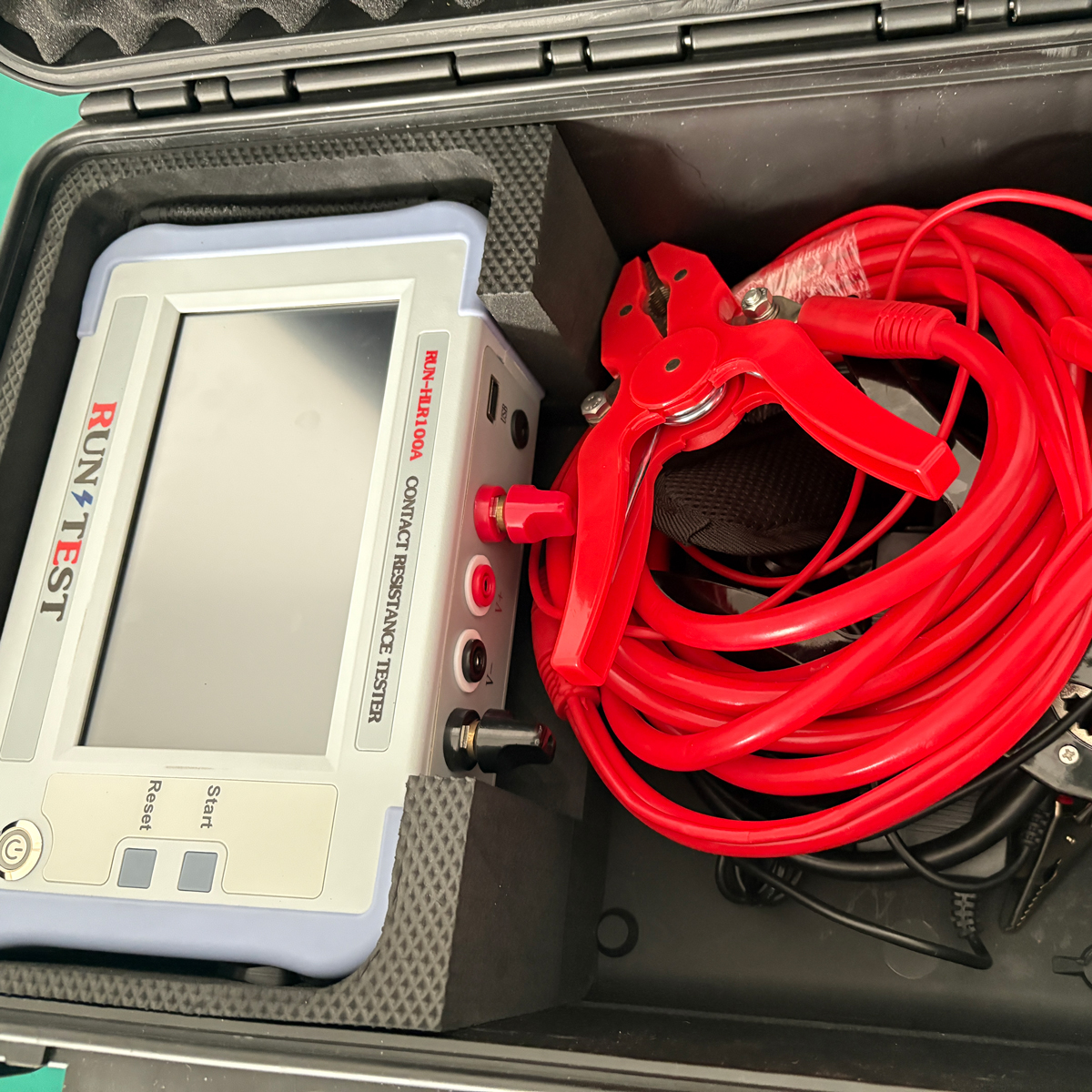

Comprobador de resistencia de contactos de 100 A de tipo manual
Breve descripción:
ITEM: RUN-HLR100A
The electrical contact resistance test is used for switching devices, cable joints as well as other connections. It can measure either the voltage drop or the resistance offered by the contacts or resistance of the joints or connections.
Advantage: Light weight , convenient and easy to carry around to do the test
Service: The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.
Se utiliza ampliamente en la medición de la resistencia de contacto, la resistencia de bucle de diversos interruptores y aparatos eléctricos, así como la resistencia de contacto de cables, alambres y soldaduras.
Technical Parameter of this contact resistance tester:
Corriente de prueba | 50A, 100A |
Gama | 0～5mΩ（50A） 0～2mΩ（100A） |
Mejor resolución | 0.1µΩ |
Precisión | ±（0.5%±2 digits） |
Método de ensayo | Prueba constante |
Temperatura de funcionamiento | 0～40℃ |
Humedad relativa | 0-90%, sin condensación |
Dimensiones | 425*335*210mm |
Peso | Instrument 2 KG |
1. Multiple Protection function
2. Intelligent Power management technology, energy saving and heat reduction.
3. Higher Voltage outputs, wider measurement range.
4. Quick and automatic measurement due to high precision large constant current power supply.
5. To eliminate the influence of the test wire resistance on the test results by four-terminals wiring method.
6. 7-inch high brightness color LCD touchscreen, clear display even under strong light.
7. Internal data storage up to 1000 sets.
8. USB, Bluetooth used for computer connection or data storage.
Packing List of the resistance tester:
Artículo | Quantity |
Instrument | 1 |
Red Test Line | 1 |
Black Test Line | 1 |
Factory Inspection Report | 1 |
Charger | 1 |
Last show the video about this handheld type comprobador de resistencia de contacto, it is really convenient for you to do the test:
