Medidor de capacidad e inductancia de transformadores

Breve descripción:

Item: RUN-CI01

Run-CI01 adopts a high-speed microprocessor, synchronously collects the voltage signal and current signal of the tested product, and automatically calculates the capacitance value, inductance value and reactive power value.

On-site measurement of capacitors does not need to remove the connecting wire, simplifying the test process, effectively improving work efficiency, and avoiding damage to power equipment.

After the test, the capacitor capacity and other parameters of each phase are automatically calculated, and it is easy to distinguish the quality change of the capacitor and the failure of the connecting conductor between the devices..

Size: 360mm*290mm*170mm

Weight: 4.85kgs ( Wire box included)

Warranty: 1 year, One year warranty from the date of purchase, customers enjoy a free repair or replacement service.

Envíenos un correo electrónico

Detalle del producto

Etiquetas del producto

Technical parameters of Transformer capacity and inductance tester

Capacitance and Inductance Tester Details are as followed:

Artículo	Parámetro	Precisión
Test voltage	AC 100V ±10%，50Hz AC 40V± 10%, 50HZ AC 10V±10%, 50HZ AC 1V±10%, 50HZ
Alcance de la prueba	Capacitance: 0.1uF～6000uF	±(reading 1%+0.01uF)
	Inductance: 50uH ～20H	±(reading 3%+0.05uH)
	Current: 5mA ～2A	±(reading 3%+0.05mA)
	Resistance: 20mΩ～20kΩ	±(reading 3%+0.1mΩ)
Alimentación	AC220V±10%，50±1Hz
Temperatura de funcionamiento	-20℃～40℃
Humedad relativa	≤85%, sin condensación
Dimensión	365285170 mm
Peso	Instrument Box: 7 KG Wire Box: 8 KG

Características principales del instrumento de ensayo de la impedancia del transformador de potencia

1. Measuring the single capacitance of a group of parallel capacitors (both single-phase capacitance and three-phase capacitance can be measured) without disconnecting the wires. At the same time, this instrument can also measure the inductance of various reactors to meet various requirements on site use.

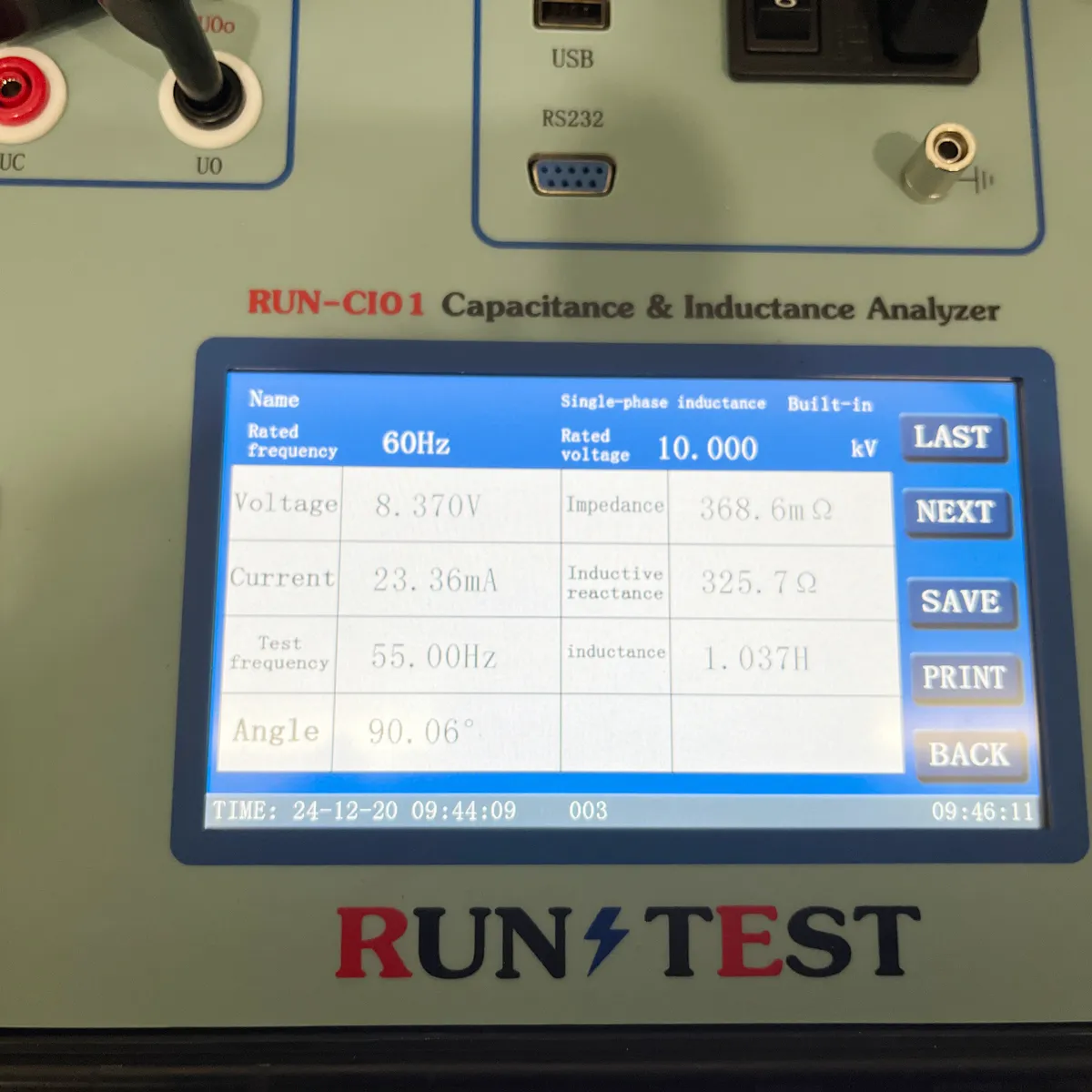

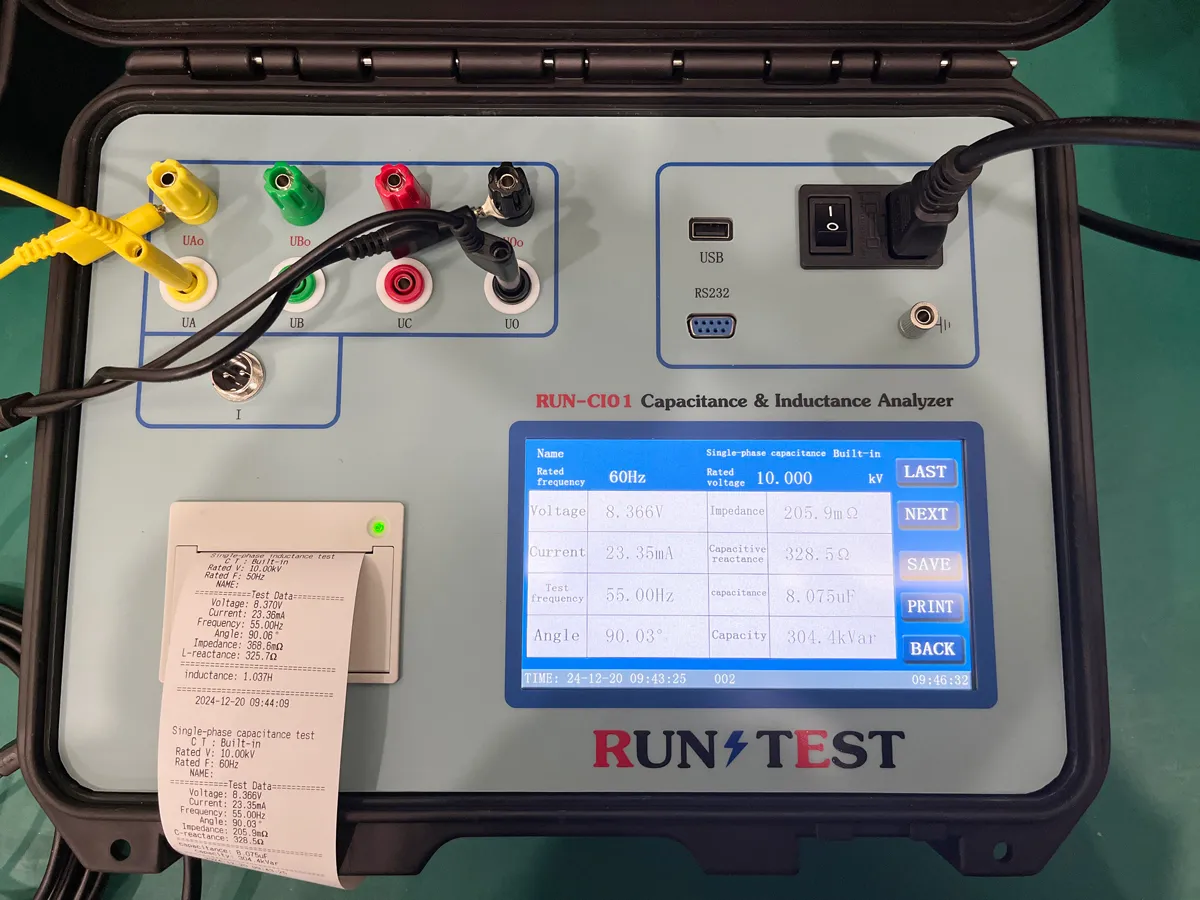

2. Displaying the measured capacitance value or inductance value along with displaying the measured voltage, current, power, frequency, impedance, phase angle and other data.

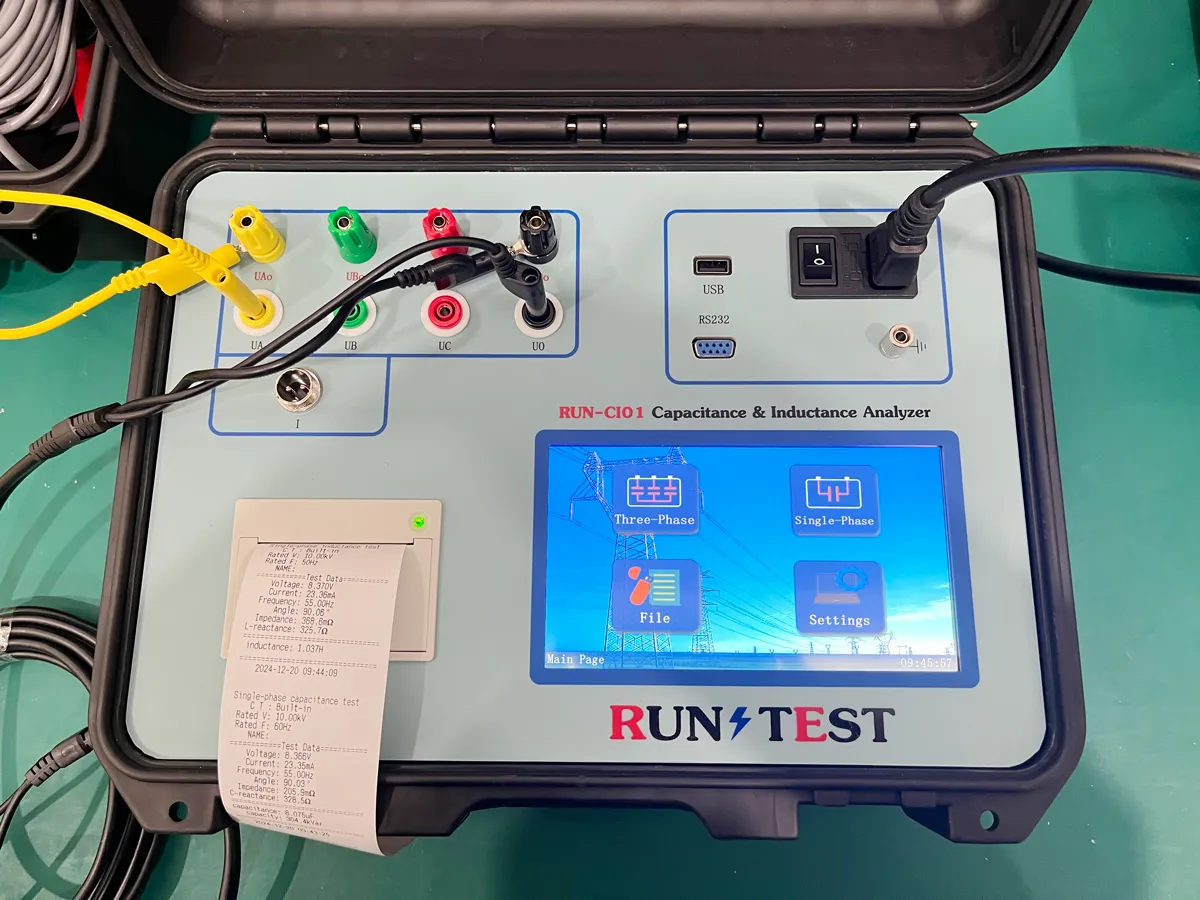

3. 7-inch high resolution LCD touchscreen, easy on-site operation.

4. Internal data storage up to 200 sets.

5. USB Port for data storage

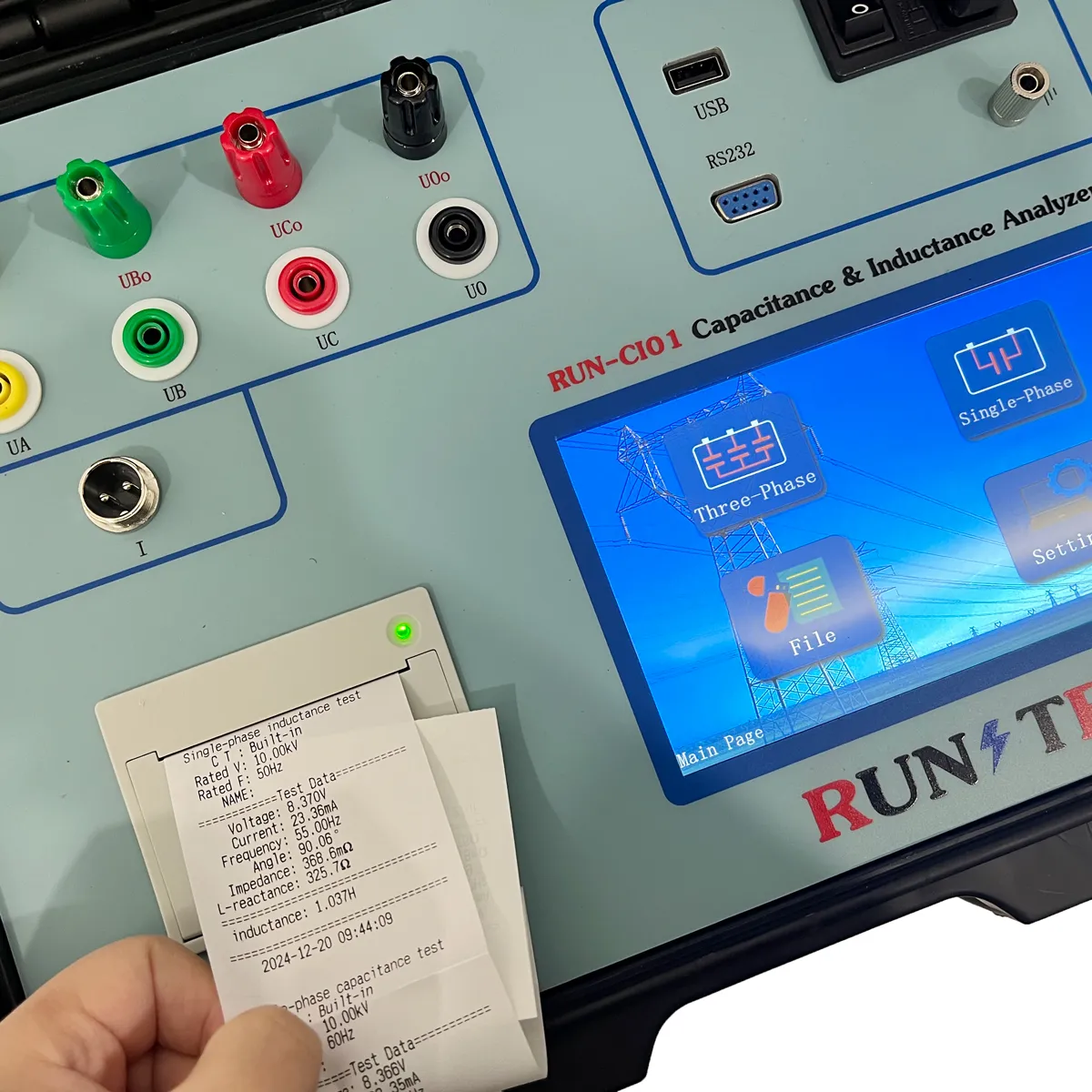

6. Built-in high-speed micro printer

7. The product is in our Prueba del transformador Program
