Comprobador de resistencia de bobinado en corriente continua (wr) 10A de último diseño

Breve descripción:

ITEM: RUN-DCR10A

Measuring the resistance of the windings assures that the connections are correct and that there are no anomalies such as loose connections.

Usage: En comprobador de resistencia de bobinados is used for checking the welding quality of the winding joints and whether the windings have inter-turn short circuits, check whether the contact of

each position of the voltage tap switch is in good condition, whether the actual position of the tap changer matches the indicated position, whether the lead wire is broken, and the multi

stranded wire is wound in parallel. Whether there is stock breakage, etc.

Advantege: 1. connect with bluetooth, really convenient by mobilephone control

2. hot-selling and good feedback by customers

Servicio: En instrumento de prueba will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and

servicio técnico. Si encuentra alguna anomalía o mal funcionamiento en el instrumento, póngase en contacto con la empresa a tiempo para acordar la solución más conveniente para usted.

Envíenos un correo electrónico

Detalle del producto

Etiquetas del producto

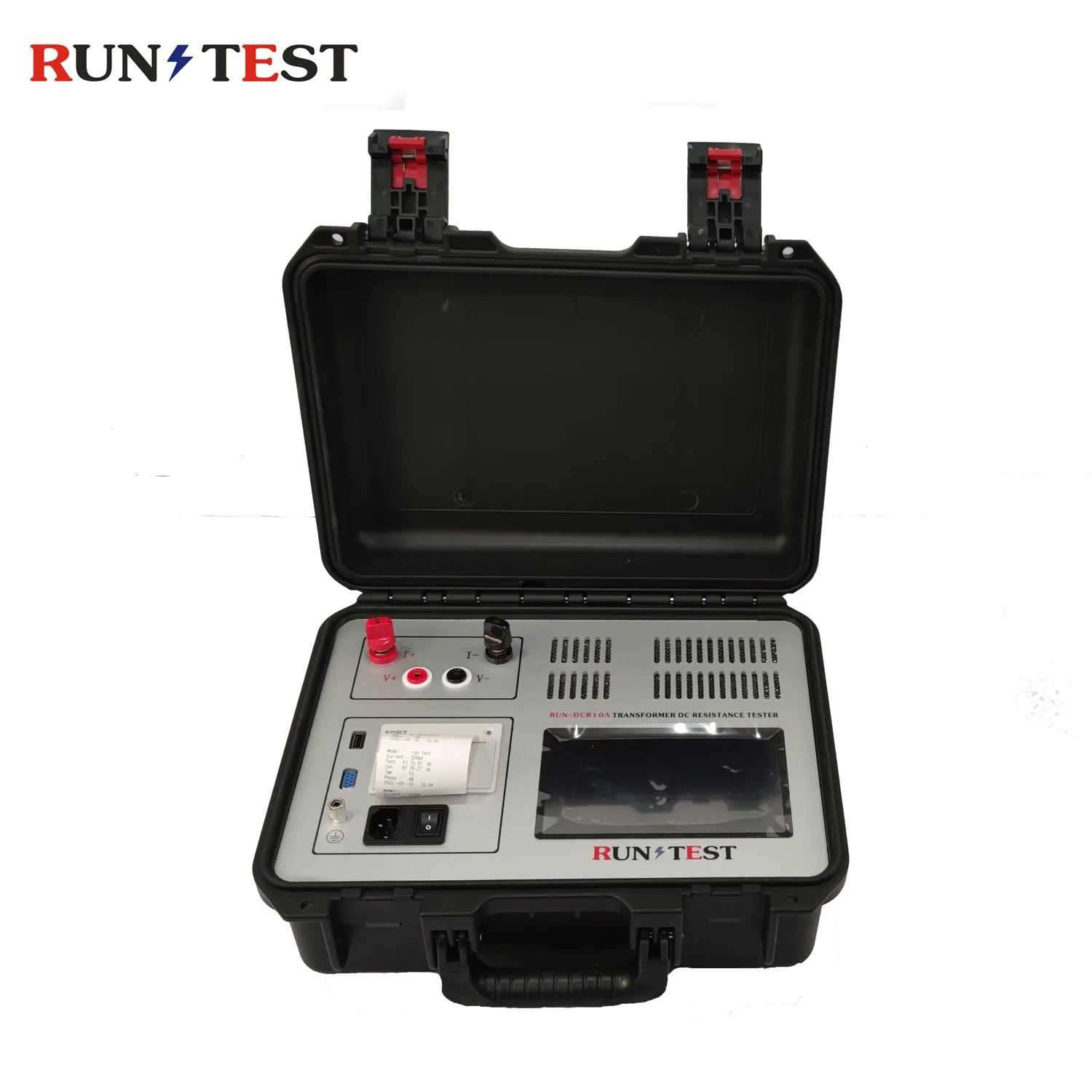

Portable DC Winding Resistance Tester for Transformer 10A DC Resistance Test Devices

Measuring the resistance of the windings assures that the connections are correct and that there are no anomalies such as loose connections.

Servicio: En Comprobador de resistencia de CC will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

Here show you guys how to operate the transformer winding resistance tester:

Ⅰ: Technical Parameters of this transformer winding resistance tester:

Artículo	Parámetro	inexactitud
Corriente de prueba	AUTO、<20mA、40mA、
Corriente de prueba	200mA、1A、5A、10A
Gama	0,5mΩ~0,8Ω (10A)	±(0,2%+2dígito)
	1mΩ-4Ω (5 A)
	5mΩ-20Ω ( 1 A)
	100mΩ-100Ω (200mA)
	1Ω-500Ω (40mA)
	100Ω-100KΩ (<20mA)
Mejor resolución	0,1μΩ
Mostrar	Pantalla táctil LCD en color de 7 pulgadas	4 dígitos efectivos Indicación de resistencia
Almacenamiento de datos	1000 juegos
Temperatura de funcionamiento	0℃~40℃
Humedad relativa	<90%RH,sin condensación
Alimentación	CA 220V±10V,50Hz±1 Hz	Fusible 2A
Potencia máxima	200W
Dimensión	360290170(mm)
Peso	Caja de instrumentos:6 KG	caja de alambre:5 KG

Ⅱ: Features about the transformer DC resistance tester:

1. Download app (Android) to control instrument completely, upload test data for easy reference.
2. Max 24V output voltage which makes it convenient to choose a larger test current when the resistance value is high, improve the test speed.

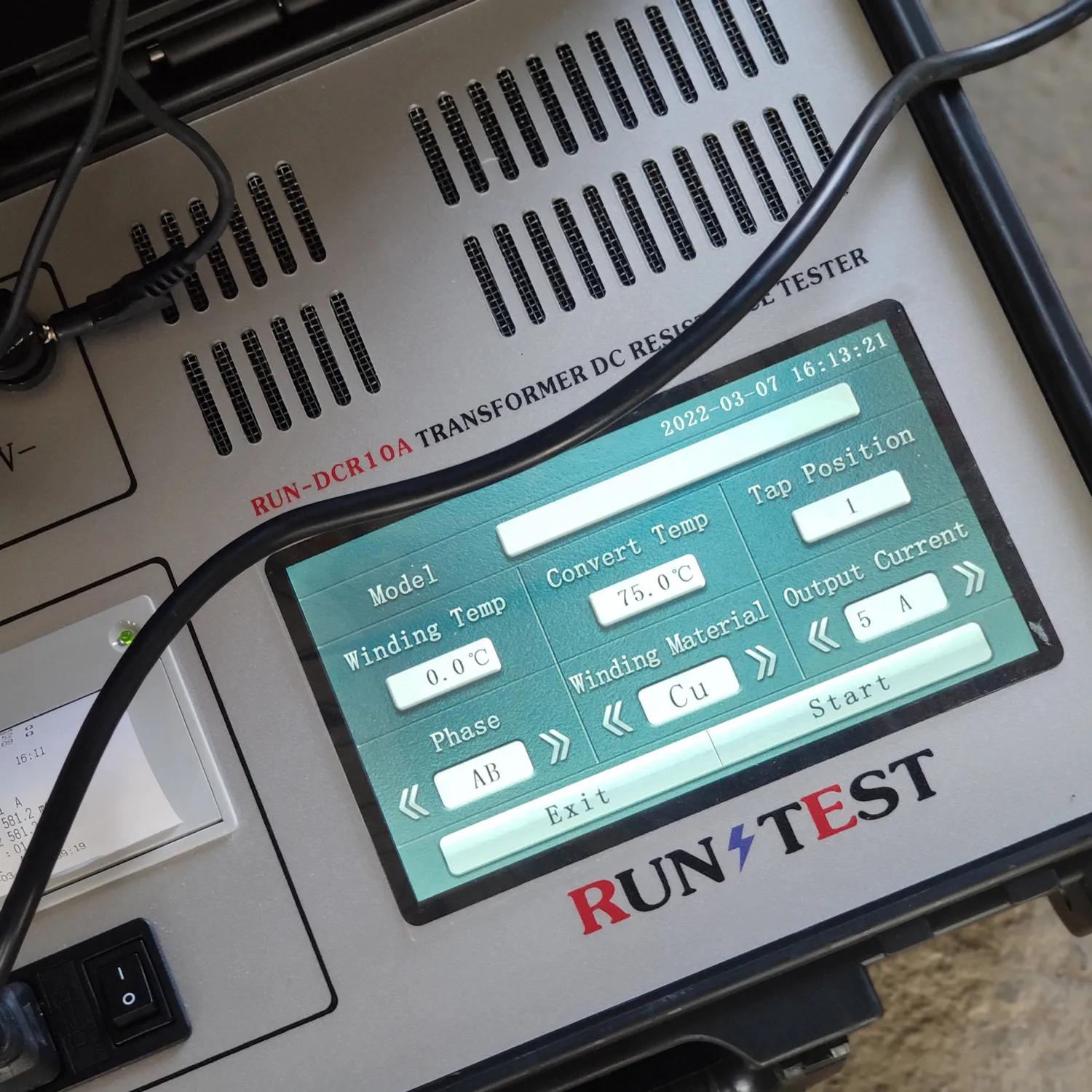

3. 7"high resolution LCD touchscreen, easy on-site operation. Good visibility under strong light.
4. New power supply technology with multiple current gears and a wide measurement range. The current can be automatically selected according to the load, which is suitable for DC resistance measurement of small and medium-sized transformers and voltage transformers.
5. multiple protection functions such as back-EMF impact, interruption of the test process, power failure, power supply
overheating, etc., which can reliably protect the instrument from back-EMF impact, and simultaneously sound an alarm.
6. With any temperature conversion function of copper and aluminum materials, touch input of any winding temperature and converted temperature
7. Internal data storage up to 1000 sets.
8. Bluetooth, RS232 port and USB Port for data storage and PC communication
9. Built-in high-speed micro printer
