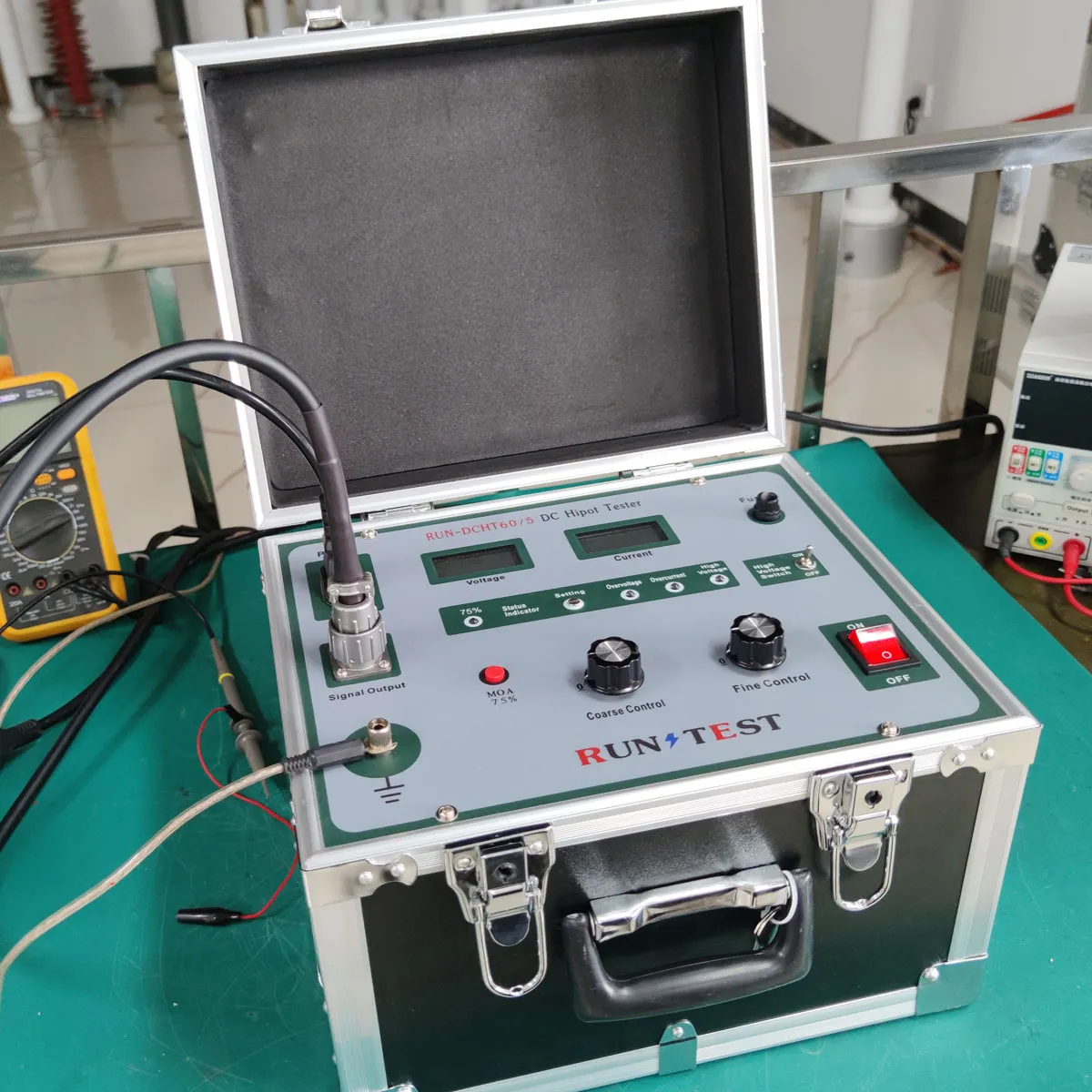

Electrical DC High Voltage Generator DC Hipot Tester

Short Description:

ITEM: RUN-DCHT60/5

DC high voltage generator adopts high frequency pulse width modulation (PWM) technology to make closed adjustment with high voltage stability, small ripple factor and fast reliable protection circuit. The wide temperature LCD screen adopts green back light, which enables clear display either in bright light or in darkness. High-pressure components use Dupont new filling material, making the product more stable and reliable. Products are widely used in electricity power supply departments, power transmission and transformation engineering company and preventive test of large industrial enterprises and scientific research institutes as regulated dc high voltage power supply.

Service: The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and

technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.


Product Detail

Product Tags

DC hipot tester video

Brief Introduction of this High Voltage Test Equipment

1.  Dc high voltage generator adopts high frequency pulse width modulation (PWM) technology to make closed adjustment with high voltage stability, small ripple factor and fast reliable protection circuit.

2.  The Wide temperature LCD screen adopts green back light, which enables clear display either in bright light or in darkness.

3.  High-pressure components use Dupont new filling material, making the product more stable and reliable.

4.  Products are widely used in electricity power supply departments, power transmission and transformation engineering company and preventive test of large industrial enterprises and scientific research institutes as regulated dc high voltage power supply.

Technical Parameters of DC High Voltage Generator for Cable and Electric Equipment Checking

Model
Technical
40/2
60/2
60/5
120/
2
120/
3
120/
5
200/
2
200/
3
Rated voltage(KV)
40
60
60
120
120
120
200
200
Rated current(mA)
2
2
5
2
3
5
2
3
Rated power(W)
80
120
300
240
360
600
400
600
Voltage accuracy
Current accuracy
DRO ± (1.0% of reading ± 0.2KV)
DRO ± (1.0% of reading ± 2)
Ripple factor
≤0.5%
Voltage stability
Random fluctuations, Supply voltage transformation ratio±10%≤1%
Overload capacity
No-load voltage can exceed 10% of the rated voltage using ten minutes maximum charging current of 1.5 times the rated current
Power supply
Single-phase current 50HZ 220V±10%
Temperature
-10~40℃
Relative Humidity
Room temperature is 25℃less than 85% (non-condensing)

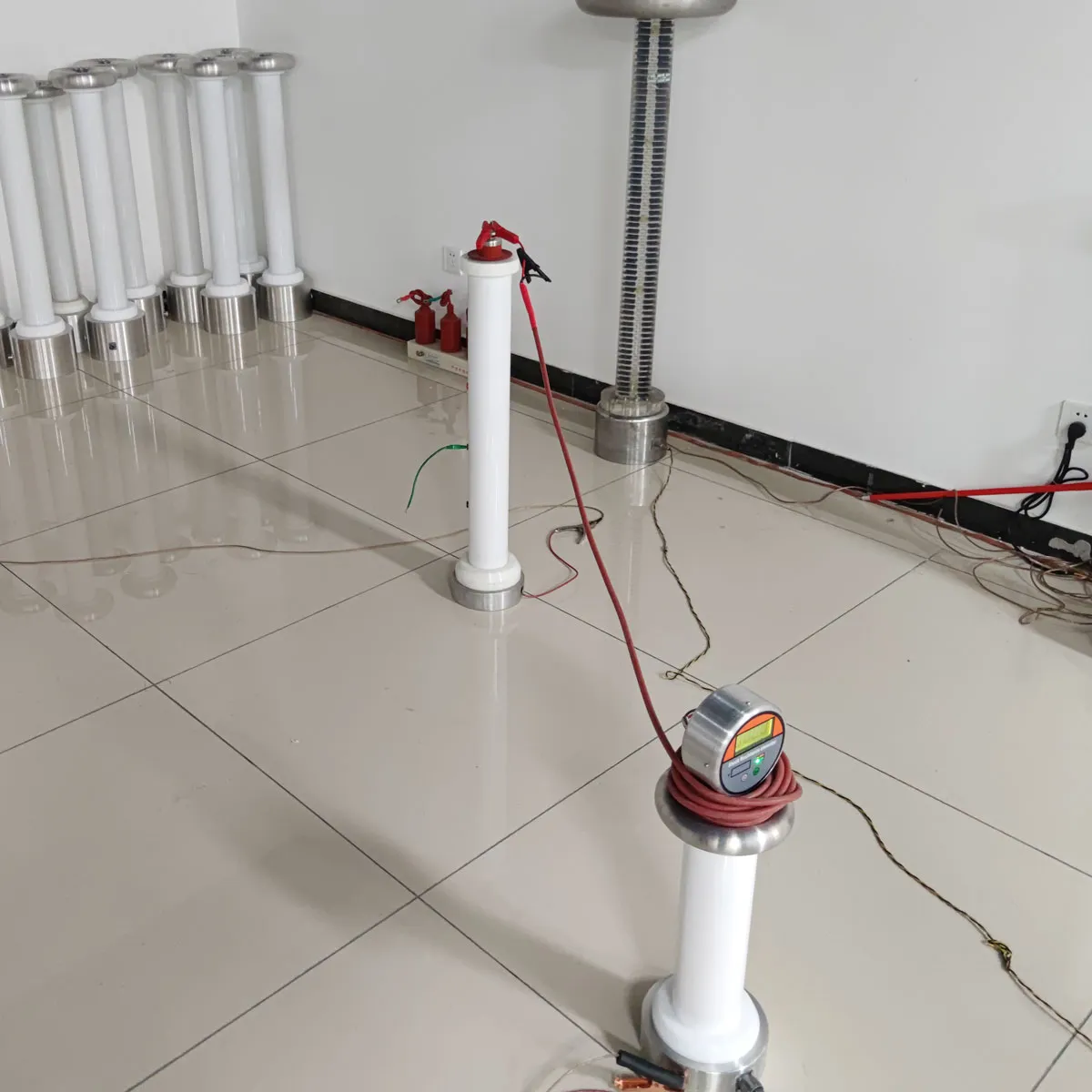

HIGH VOLTAGE TEST
CABLE TEST

Features of the DC Power Frequency High Voltage Generator

1.  Dc high voltage generator adopts high frequency PWM technology to make closed adjustment with high voltage stability, small ripple factor and fast reliable protection circuit. The generator can endure direct discharge by devices of large capacitance. It is of small size and of light weight, convenient for field use.
2.  Over-voltage setting function displays the over-voltage value during regulation process; perfect protection against discharge of over-voltage, over-current and short circuit. This is the best companion for cable experiments.
3.  Perfect break line and non-zero potential start protection function protects the operator and samples at any time. This product has overall design of shock-proof control box, concise, clear panel design and voice prompt for operation.
4.  75% MOA voltage switch button, simple and convenient testing arrester.

Introduction about Run Test electric test equipment company

 We are a high-tech company which integrates R&D, production, sales and service of power equipments. We have been in electrical testing industry for many years, specializing in design, manufacture, and test service. We are a qualified supplier and service provider of State Grid in China.

Our products include partial discharge tester, transformer test series, insulation oil test series, hipot test series, Relay and Insulation test Series, Cable fault test series, and SF6 gas analyzer, etc.

Our company's products are widely used in many fields such as electric power, railways, machinery, petrochemicals, and are selected by many large transformer factories and petrochemical plants. The products have been exported to Southeast Asia, the Middle East, Africa, North America, Latin America, Europe and other regions. With the good quality products, competitive prices and excellent services, we have won a good reputation among customers abroad.
