Ultrasonic measurement switch cabinet partial discharge tester

Short Description:

Item:RUN-PD100K

This partial discharge tester is used to detect and measure the instantaneous ground voltage discharge and surface discharge in the switch cabinet, and display the discharge waveform and discharge amount in real time on the LCD screen.


Product Detail

Product Tags

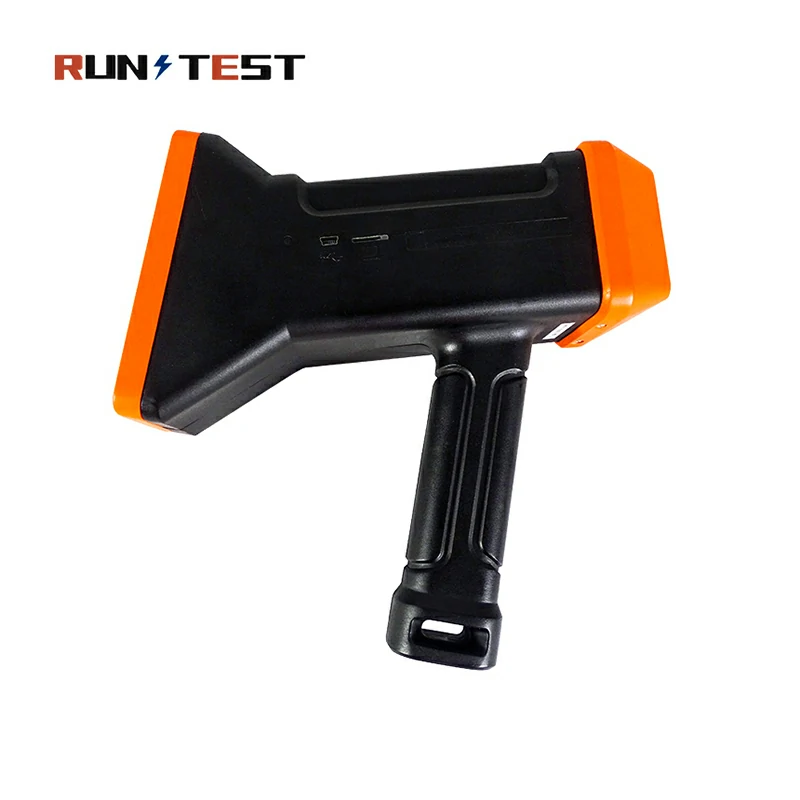

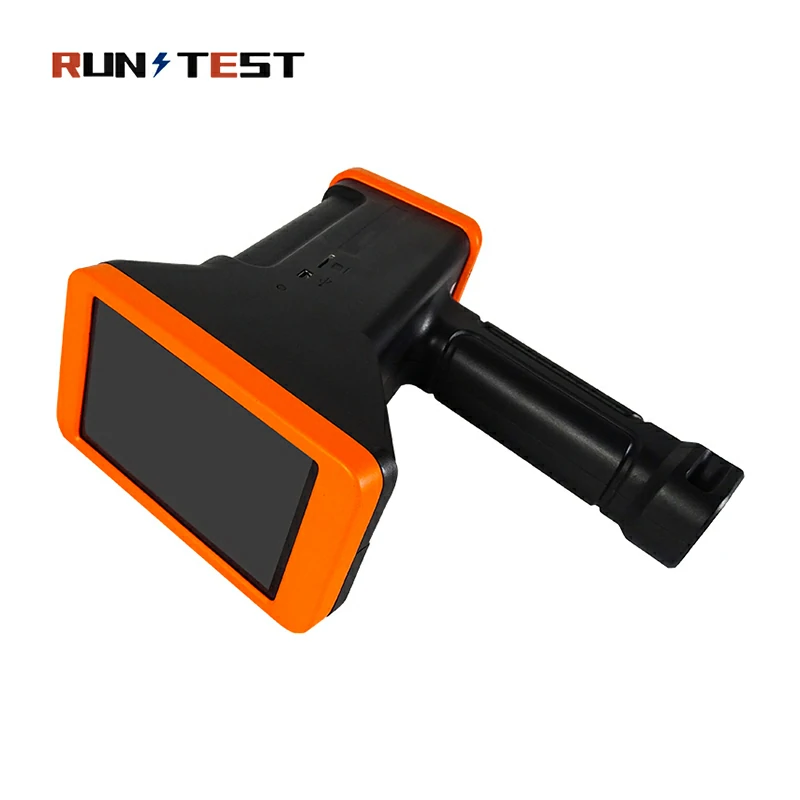

Portable Hand Held Pd Detector Partial Discharge Tester

The instrument adopts a portable design, which can scan and detect directly on the switch cabinet shell without any influence or damage to the operation of the switch cabinet. At the same time, the measured signal can be stored and replayed on the TF card for easy reference, and the supplied earphones can be used to hear sound of electric discharge.

details-(3)
details-(2)

Product Parameters



Instrument

Display 4.3-inch true color TFT LCD touch screen
Input Signal Channel TEV *1, Air-coupled ultrasonic *1
Power Socket DV 12V
Headphone Jack 3.5mm
Storage TF Card supported
Battery 12V 2500mAH
Operating hours >4h
Dimension Instrument Box:240*240*80 mm  Handle Dimension:146*46.5*40 mm
Weight <1kg

TEV Measurement

Sensor Type Capacitive Coupling
Sensor Specifications Built-in
Frequency Range 10-100MHz
Measuring Range 0-50dB
Accuracy ±1dB
Resolution 1dB

Ultrasonic Measurement

Sensor Type Air Coupling
Sensor Specifications Built-in
Resonance Frequency 40kHz±1kHz
Measuring Range -10dBuV-70dBuv
Sensitivity -68dB(40.0kHz,0dB=1 Volt/μbarrms SPL)
Accuracy ±1dB
Resolution 1dB

Other Specification

Normal working hours > 4 Hours
Battery protection lease recharge when battery is low
Rated Voltage 100-240V
Charging Voltage 12V
Charging Current 0.5A
Time Required to fully charge 7 Hours
Operating Temperature 0-55℃

Application for Partial Discharge Testing Set

Partial discharge usually occurs where the wire insulation is damaged. It can cause short circuits and fires, resulting in destructive fatal failures. The most dangerous situation is the poor isolation of the external as a whole, and the gradual collapse leads to unexpected equipment failures. Therefore, continuous or regular monitoring of high-voltage equipment and timely detection of partial discharge are very important.

Partial discharge detectors are widely used in the measurement of partial discharge of various high-voltage electrical products such as transformers, transformers, high-voltage switches, zinc oxide arresters, power cables, etc., product type tests, insulation operation supervision, etc.
