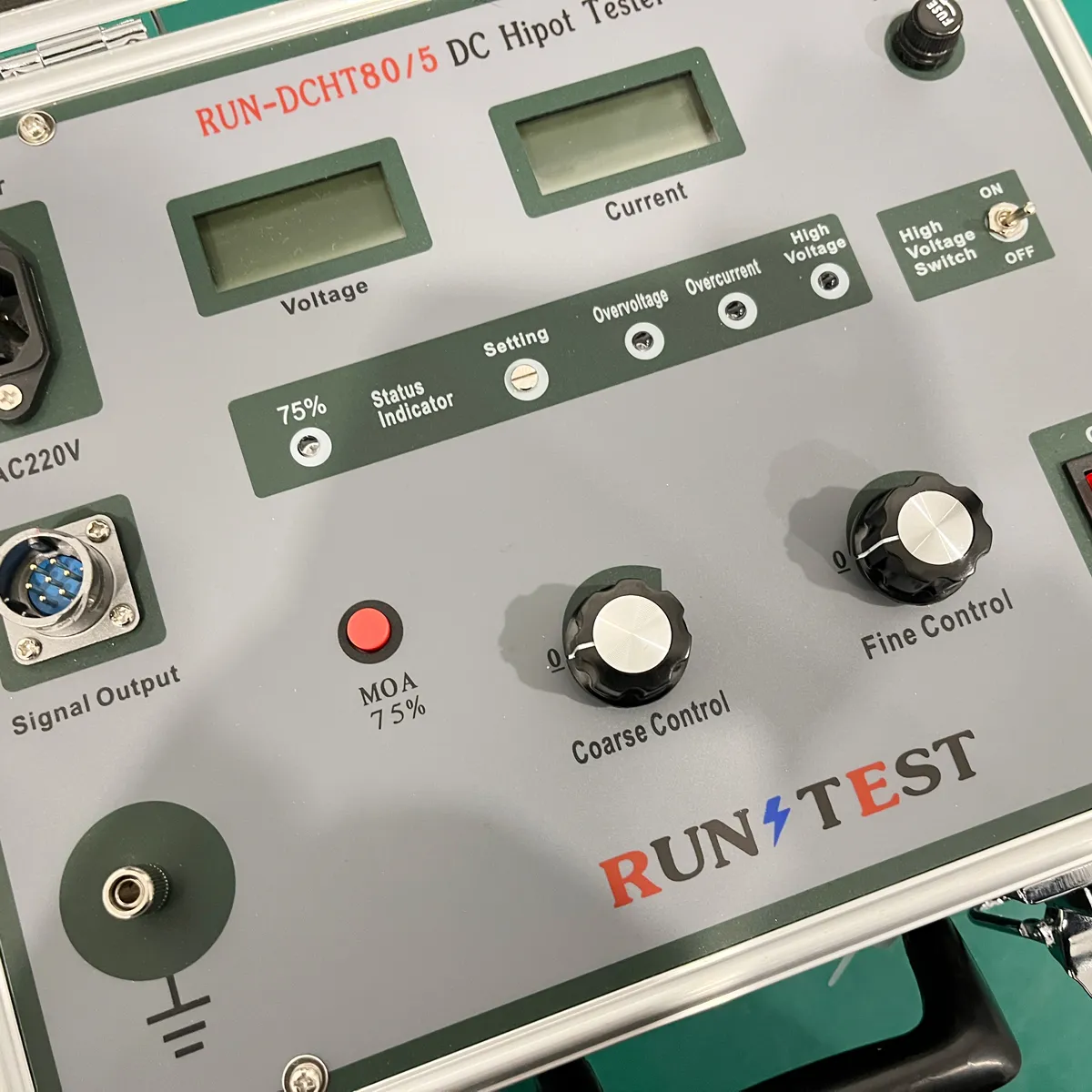

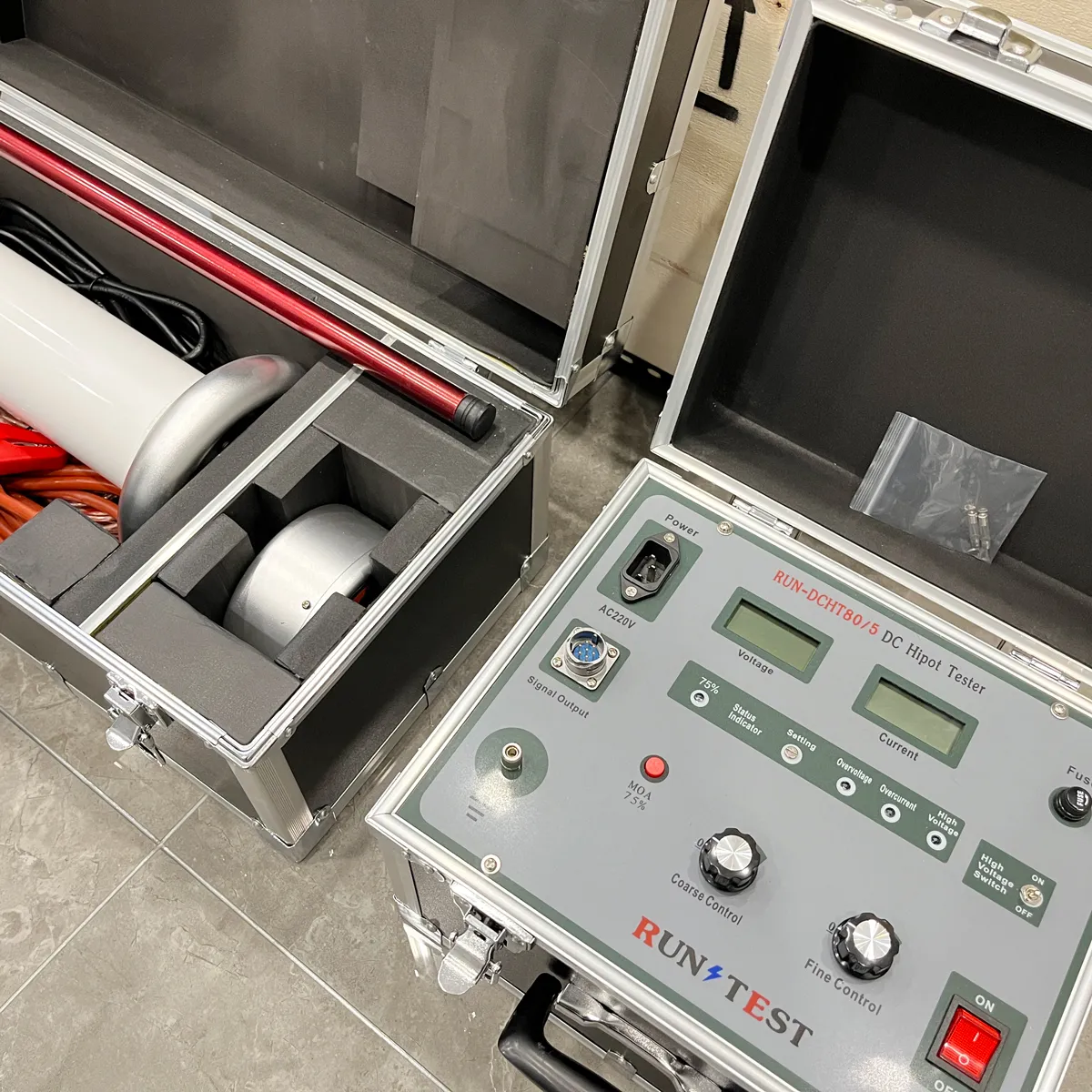

80kv 5mA DC Hipot Tester
Short Description:
ITEM: RUN-DCHT80/5 Dc high voltage generator adopts high frequency pulse width modulation (PWM) technology to make closed adjustment with high voltage stability, small ripple factor and fast reliable protection circuit. The wide temperature LCD screen adopts green back light, which enables clear display either in bright light or in darkness. High-pressure components use Dupont new filling material, making the product more stable and reliable. Products are widely used in electricity power supply departments, power transmission and transformation engineering company and preventive test of large industrial enterprises and scientific research institutes as regulated dc high voltage power supply.
SERVICE: The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and
technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.
80kv 5mA DC Hipot Tester
DC High Voltage Test adopts high frequency pulse width modulation (PWM) technology to make closed adjustment with high voltage stability, small ripple factor and fast reliable protection circuit. The wide temperature LCD screen adopts green back light, which enables clear display either in bright light or in darkness. High-pressure components use Dupont new filling material, making the product more stable and reliable. Products are widely used in electricity power supply departments, power transmission and transformation engineering company and preventive test of large industrial enterprises and scientific research institutes as regulated dc high voltage power supply.
| Voltage/Current | Control Box | High-Voltage Unit | |||
| Rated Voltage | Size (mm) | Weight (kg) | Size (mm) | Weight (kg) | |
| 60/2-10 | 60KV | 310 * 250 * 230 | 5kg | 470 * 260 * 220 | 6kg |
| 80/2-10 | 80KV | 310 * 250 * 230 | 6kg | 490*260*220 | 8kg |
| 100/2-5 | 100KV | 310 * 250 * 230 | 6kg | 550*260*220 | 8kg |
| 120/2-5 | 120KV | 310 * 250 * 230 | 7kg | 600 * 260 * 220 | 10kg |
| 200/2-5 | 200KV | 310 * 250 * 230 | 8kg | 1000 * 280 * 270 | 20kg |
| 300/2-5 | 300KV | 310 * 250 * 230 | 9kg | 1300 * 280 * 270 | 22kg |
| Output Polarity | Negative polarity, no-voltage start, linear continuous adjustment | ||||
| Power Supply | 50HZ AC220V±10% | ||||
| Voltage Error | 0.5%±2，best resolution 0.1KV | ||||
| Current Error | 0.5%±2，best resolution 0.1µA | ||||
| Ripple Factor | better than 0.5% | ||||
| Voltage Stability | Random fluctuation | ||||
| Work Method | Interval working, less than 30 minutes under rated load | ||||
| Operating | Temperature: 0-40℃, humidity: less than 90% | ||||
| Storage | Temperature: -10℃～40℃, humidity: less than 90% | ||||
| Altitude | Lower than 3000 m | ||||
| Size= grading shield diameter(R)*insulating cylinder(r)*total height(H) | |||||
Main features for the 80kv dc hihg voltage tester
1. Dc high voltage generator adopts high frequency PWM technology to make closed adjustment with high voltage stability, small ripple factor and fast reliable protection circuit. The generator can endure direct discharge by devices of large capacitance. It is of small size and of light weight, convenient for field use.
2. Full range of linear smoothly adjusted voltage, with voltage regulation accuracy smaller than 0.1%; voltage measurement accuracy is 0.5%, resolution 0.1kv; Current measurement accuracy is 0.5%, the minimum resolution: control box 1µA, shock resistance current 0.1µA.
3. The generator uses AC 220 V power supply (AC220V±10%, 50 hz±1%), the ripple factor is less than 0.5%, and can be used for all-weather at the site .
4. High voltage multiplier uses Dupont materials for full solid encapsulation, overcoming the inconvenience brought by the air and oil filled equipment. Broad base and outer cylinder of light quality makes it stand steadily and more convenient for maintenance.
5. 75% MOA voltage switch button, simple and convenient testing arrester.
6. Over-voltage setting function displays the over-voltage value during regulation process; perfect protection against discharge of over-voltage, over-current and short circuit. This is the best companion for cable experiments.
