Transformer Winding Resistance Meter DC Resistance Tester

Short Description:


The product is mainly used in the measurement of contact resistance and other micro-Euclidean resistance of switch contacts.

Advantage: 1. The product is compact, hand-held operation, battery power supply, easy to carry.

2. The test speed is fast and the accuracy is high.

Product Detail

winding resistance tester Video

Product Tags

Transformer Winding Resistance Meter DC Resistance Tester


Introduction for this Portable DC Winding Resistance Tester

Portable DC Winding Resistance Tester is an innovative product with compact size, hand-held operation, more portable and easy to carry.
The product is not only suitable for the measurement of transformer, transformer, reactor and other inductive test products, but also suitable for the measurement of copper bars, conductors, switch contacts and other resistive test products. The instrument has fast testing speed and high accuracy.

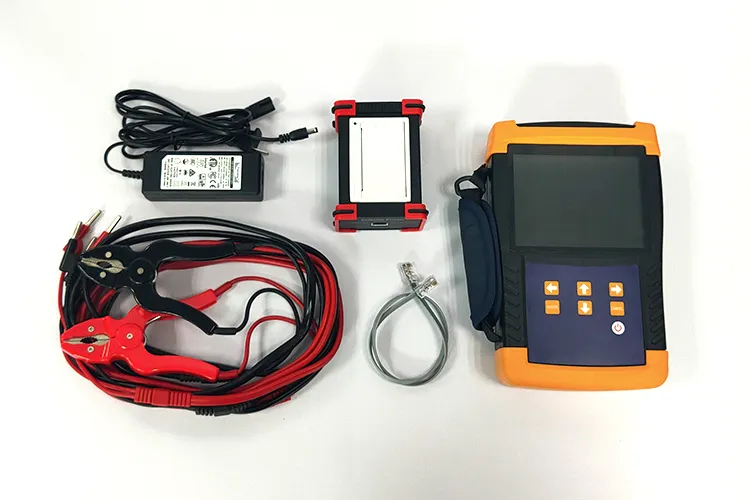

Standard accessories of this handheld transformer DC resistance meter
√1 Hand-held transformer winding resistance tester
√1 sets of test lines (red and black each)
√1 charger(16.8V)
√1 wrist band (attached to a hand-held tester))
√1 print user manual
√1 copy of certificate and factory test report
√1 external printer (with printing cable attached)
√1 wireless temperature measurement module (with 2 rubber rod antennas)
√1 charger(4.2V)

Technical Parameter of the 10A Winding Resistance Tester

Measuring Range
Output Current
Measuring Range
100A 0~2000µΩ
80A 0~5mΩ
50A 0~10mΩ
30A 0~20mΩ
Technical Index
Resolution Ratio
Display Digit
Four and a half
Test Power Supply
Constant current limit voltage,about 2V
Input Voltage
Maximum 5V
Measuring Time
Quick、10~60 seconds optional
Testing Times
More than 600 times(full charge, fast measurement mode)
Test Line
Resistance less than 10mΩ
Conditions Of Use and Shape
working Power Supply
Built-in lithium battery or external charger,Charger input 100~240VAC,50HZ/60HZ
Charging Voltage
Charging Current
Charging Time
Abour 3 hrs
Auto Shut Off
5 minutes automatic shutdown without operation
Instrument Weight
1.7kg(exclude test lines)
Instrument Dimension
Environment Temperature
Relative Humidity
≤90%,no dew

DC resistance test

Current gear

Measuring range

Current gear

Measuring range


500µΩ ~ 200mΩ


10Ω ~ 200Ω


10mΩ ~ 1Ω


50Ω ~ 2kΩ


100mΩ ~ 20Ω


500Ω ~ 50kΩ

Features of Transformer DC Winding Resistance Tester for Transformer

1.  Adaptive lithium batteries or 220 v ac supply. After a single charge, the dc resistance of hundreds of transformers can be tested continuously. The test process is simple and convenient
2.  The output current is six grades, the maximum output current is 10A, the maximum output voltage is 25V, and the current can be automatically selected, which is convenient and fast.
3.  Wide range and high accuracy,500uΩ~50KΩ.
4.  It has the function of resistance temperature conversion, and can be equipped with wireless temperature measurement module, which can measure the field test temperature in real time to ensure the accuracy of resistance commutation value.
5.  It has many kinds of protection functions, such as back EMF protection, broken line protection, power-off protection and over heating alarm.
6.  6-inch super industrial high-brightness color LCD screen, still visible under strong sunlight.
7.  Equipped with external printer, facilitate data printing
8.  It can be stored locally and on USB memory.
