Three Phase Transformer Turns Ratio Test Equipment TTR Tester
Portable Current Transformer Transformation Turn Ratio Tester /TTR

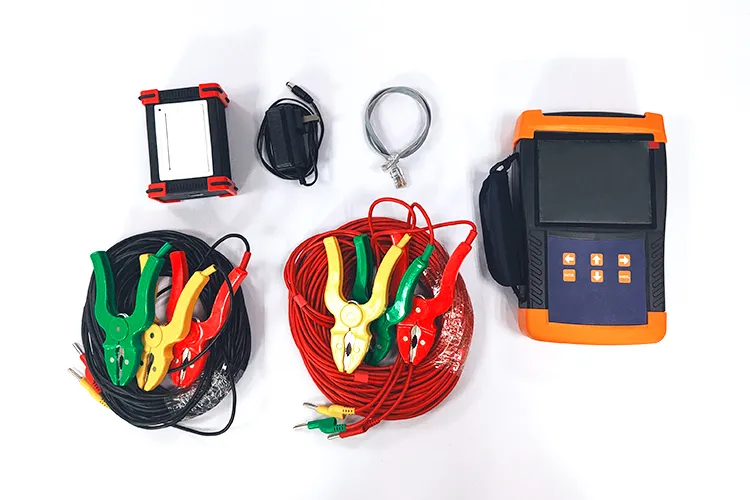

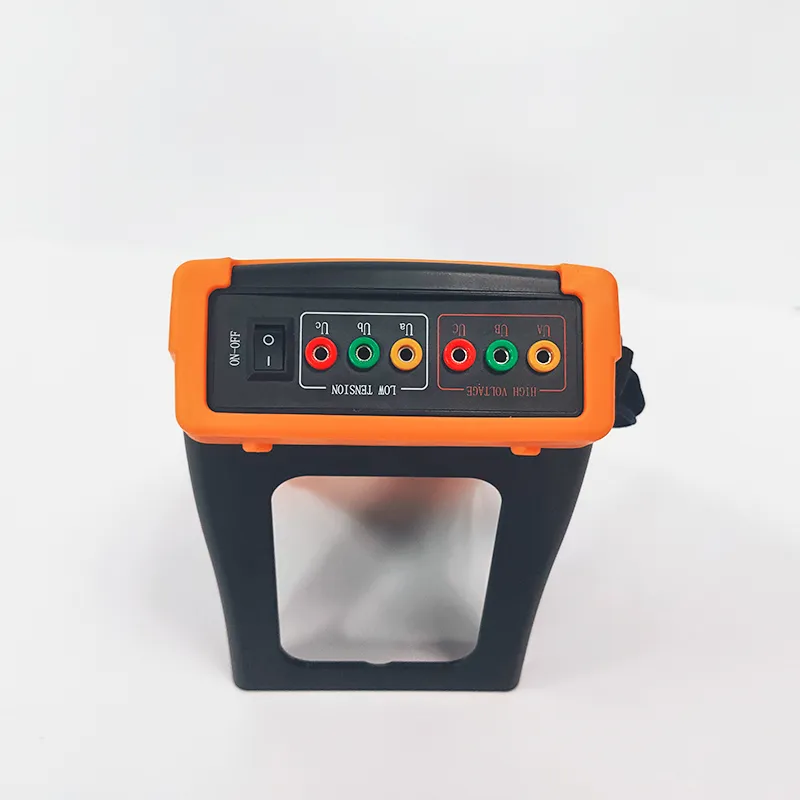

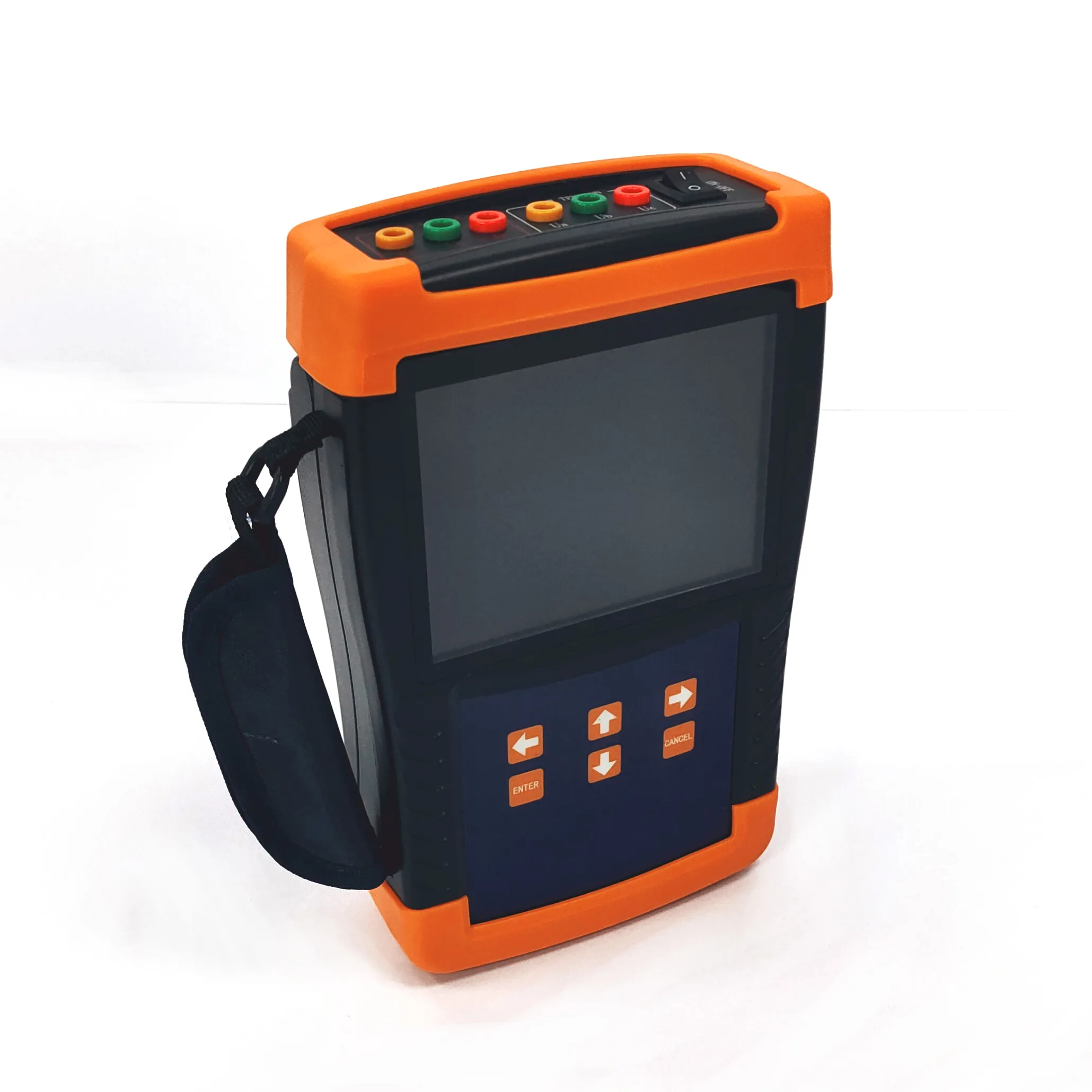

Standard accessories of thishandheld TTR meter：
√1 Hand-held transformer turn ratio tester
√1 sets of test lines (red and black each)
√1 charger(optional)
√1 external printer (with printing cable attached）
√1 wrist band (attached to a hand-held tester)）
√1 print user manual
√1 copy of certificate and factory test report
Technical Parameter of the transformer turns ratio meter
|
Range
|
0.9～10000
|
|
Accuracy
|
±（Reading×0.1%+2 words）（≤500）
|
|
±（Reading×0.2%+2 words）（>500≤3000）
|
|
|
±（Reading×0.3%+2 words）（>3000）
|
|
|
Resolution ration
|
0.9～9.9999（0.0001）
|
|
10～99.999（0.001）
|
|
|
100～999.99（0.01）
|
|
|
1000～9999.9（0.1）
|
|
|
10000 and above（1）
|
|
|
Working power supply
|
The built-in battery or external charger, charger conditions of use，Input 100-240 VAC，50/60 HZ
|
|
Charging time
|
About 2 hr
|
|
Instrument weight
|
1.7 kg
|
|
Instrument dimension
|
246 mm（L）×156 mm（W）×62 mm（H）
|
|
Use of temperature
|
-10℃～50℃
|
|
Relative humidity
|
≤90%，No dew
|

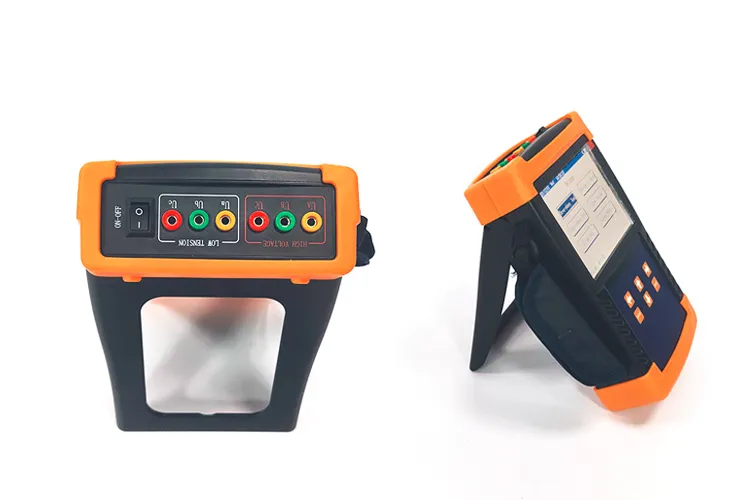

Features of Transformer Turns Ratio Meter/3 Phase TTR Tester
1. Lithium battery power supply or 100-240V AC power supply is self-adaptive. After one charge, more than 100 transformers can be continuously tested in the ratio group. The test process is simple and convenient.
2. It has the function of blind measurement, that is, to perform variable ratio and group test when there is no connection
between high and low voltage.
3. Based on the test of conventional transformer, Z-type transformer and PT sample, the polarity test function of CT variable ratio is added, and the application field is wider
4. Wide range and high accuracy, the variable ratio measurement range can reach 10,000, and the test accuracy can be guaranteed 0.3% when the maximum value is 10,000.
5. It has perfect protection functions such as reverse connection protection and output short circuit protection.
6. 6-inch super industrial high-brightness color LCD screen, still visible under strong sunlight.
7. Equipped with external printer, facilitate data printing

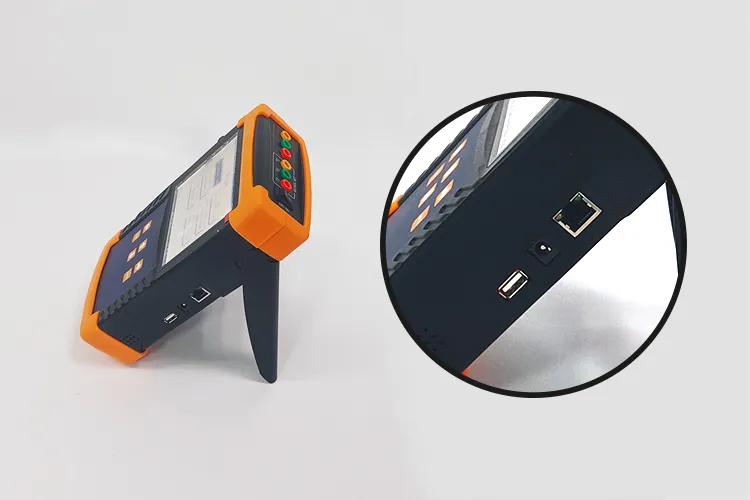

8. It can be stored locally and on USB memory.
