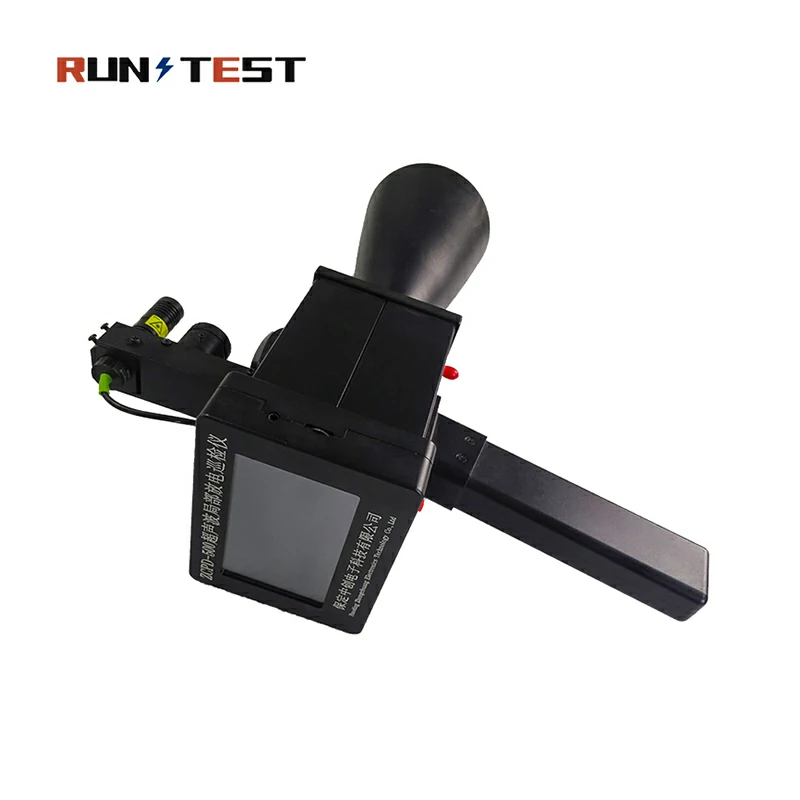

Durable cheap high sensitivity portable design small size partial discharge tester

Short Description:

Item:RUN-PD500

Identify position and type of fault when equipment is on-line and power on.


Product Detail

Product Tags

High Voltage Electrical Power Frequency Partial Discharge Testing Equipment

detail-(1)
detail-(4)

Technical Parameter of this partial discharge tester

System

WINCE6.0

CPU

Main frequency 533MHz

Storage and RAM

RAM 256MB DDR2, 1GB Nand Flash

Display

4.3” TFT true color LCD touch screen,resolution 480 * 272

Port

SD memory card,USB,serial ports,headphone

SD memory card

8G and above TF card

Camera

3 million pixel high-definition camera

Supplementary

GPS,thermo-hygrometer,high brightness laser pen

Storage function

GPS coordinate,time /date,temperature/humidity

Frequency

20—150kHz
Sensor 40kHz x 1Ea

Operating temp.

-25℃ ~ 70℃

Relative Humidity

0 - 95%

Power Supply

input:100-240V, 50/60Hz

output:Voltage 16.8V,Current 1A

Battery

Battery:Lithium battery

Operating hours:~ 8 hrs

Battery protection:LCD backlight turns off when there is no operation within 5 minutes。When the battery power is less than 5%, the system will beep to prompt to save the data in time, and the user needs to shut down and charge.

Feature of the Testing Instrument:

1.Portable design, small size, light weight,

2.Accurate position and easy focus on faulty equipment through camera and laser detector.

3.Color touch screen, display waveform, dB value, temperature, humidity, GPS.

4. Convert the abnormal ultrasonic signal detected by the detector into audible sound signal and waveform output

5.The embedded GPS receiver automatically stores the coordinate data, which is convenient for querying and saving the detection path

6.Backstage data management software can realize data statistics and generate report.

7.High sensitivity, accurate position cable fault.

8.Free from noisy environment.

9.30 meters non-contact live detection distance, safe and reliable.

Application

detail-(2)
detail-(3)
