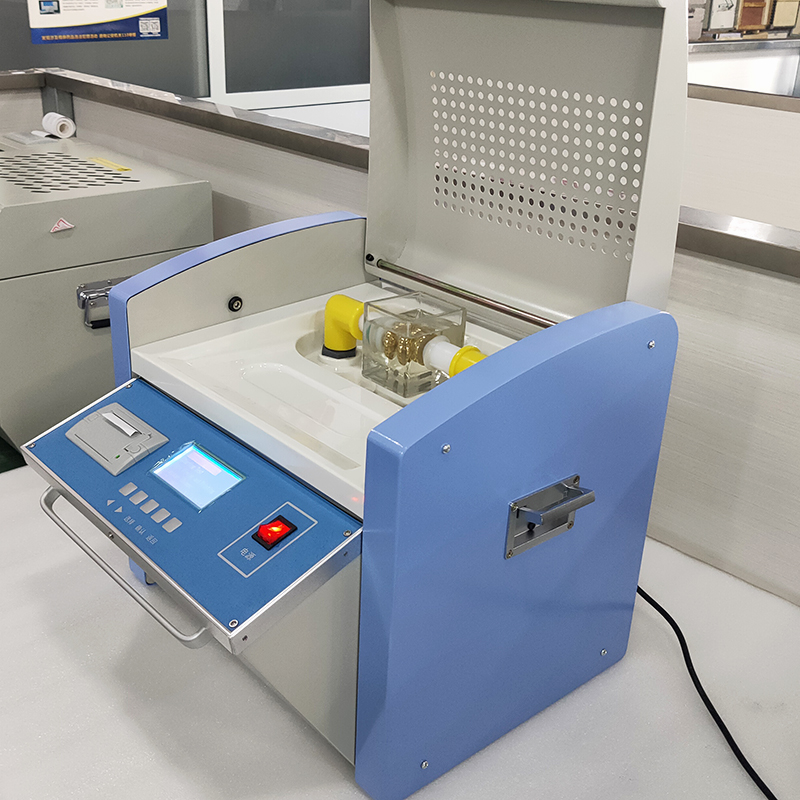

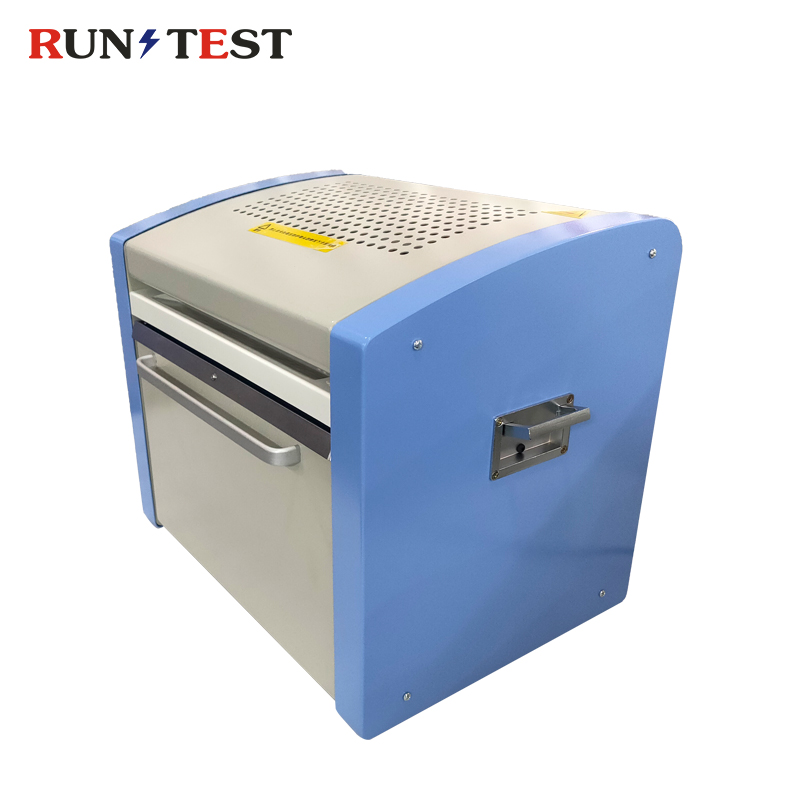

Automatic 100kv Insulation Oil Tester Dielectric Strength Test Equipment Transformer Oil BDV Tester

Short Description:

Item: RUN-BDV100

Single-Chip Microcomputer as the core ensure automatic test, high accuracy test. Light Weight which makes it easy to carry.

Reliable quality at economical price, suitable for laboratory oil analysis

Testing all kinds of Insulating Oil Dielectric Strength Value

Package: Sturdy wooden box packaging with foam inside

Delivery date: within 10 days

Product Detail

Product Tags

100kv High Quality Dielectric Strength Test Machine Transformer Oil Breakdown Voltage BDV Tester


Specification of this Transformer Oil BDV Test Kits

Output Voltage

0~100 kV

Power Distortion Rate


Booster Capacity

1.5 kVA

Boosting Speed

0.5~5.0 kV/s (Adjustable)

Resting Time

15 Minutes

Boost Interval

5 Minutes

Number of Boost


Supply Voltage

AC 220 V ±10%

Power Frequency

50 Hz

Power Consumption


Operating Temperature


Relative Humidity

≤75 % RH


465×385×425 (mm)

Features about the Transformer Oil Dielectric Test Equipment

1.This instrument uses a microprocessor to complete operations such as boosting, holding, stirring, static release, calculation, printing automatically., and can perform oil circulation pressure test within the range of 0-100KV.

2.Large-screen LCD display

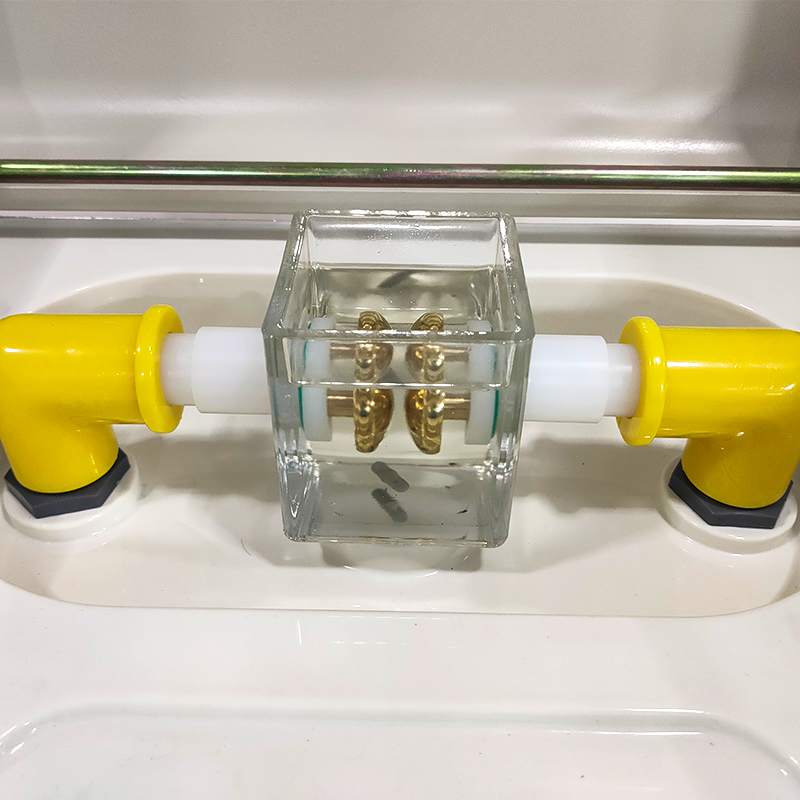

3.Simple operation, the operator only needs to make simple settings, and the instrument will automatically complete the pressure test of 1 cup of oil sample according to the settings. The breakdown voltage value and cycle times of 1 to 6 times are automatically stored. After the test is completed, the printer can print out the breakdown voltage value and average value of each time.

4.Power-off retention, test results storage up to 100 sets, and can display the current ambient temperature and humidity.

5.The single-chip microcomputer is used to boost the voltage at a constant speed, and the voltage frequency is accurate to 50HZ, which makes the whole process easy to control.

6.With over-voltage, over-current, limit protection, etc., to ensure the safety of operators.

7.With temperature measurement display function and system clock display.

8.Standard RS232 interface, which can communicate with computer.
