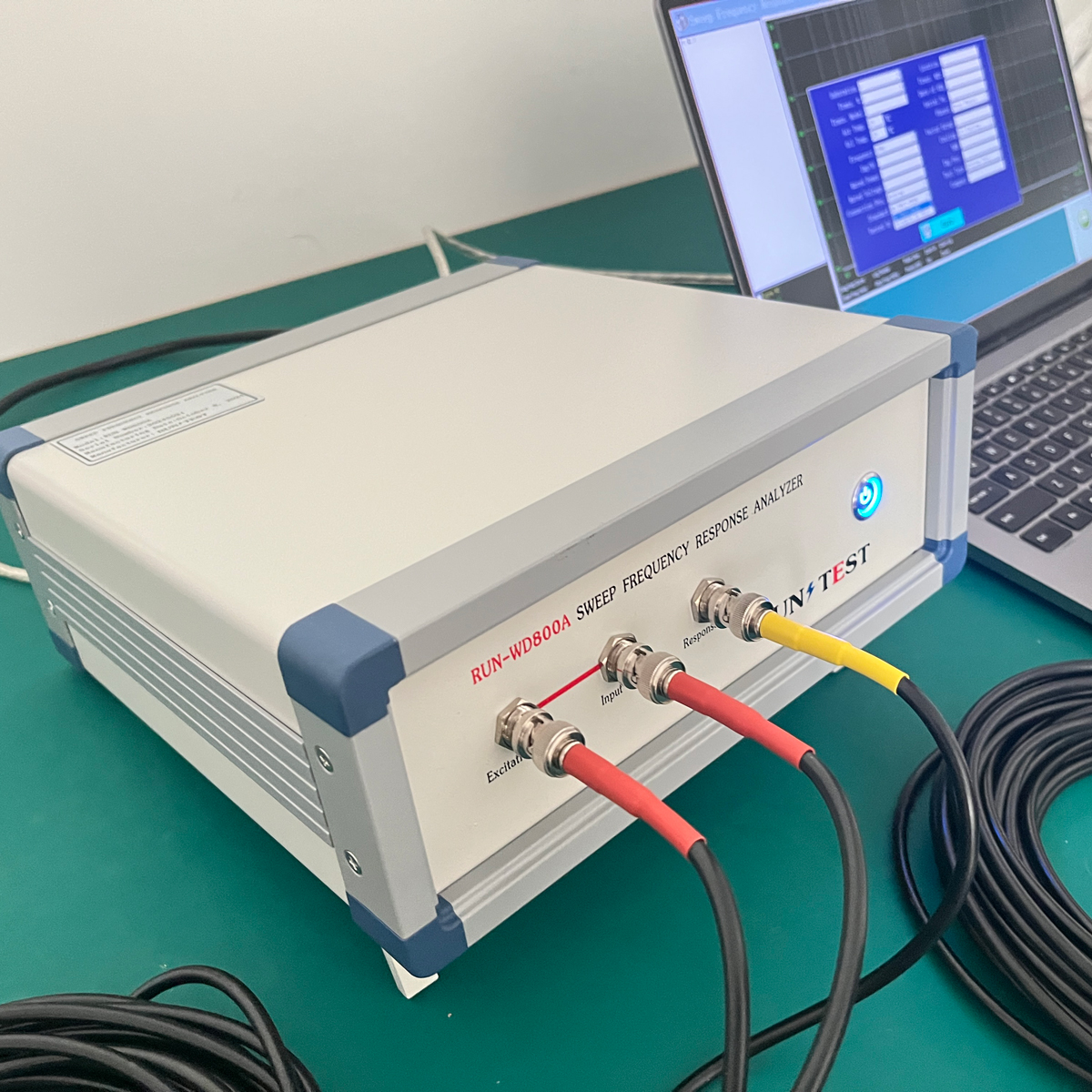

Sfra Sweep Frequency Response Analyzer for Transformer Winding Deformation Test

Short Description:

ITEM: RUN-WD800A

The Sweep Frequency Response Analyzer/Transformer Winding Deformation Tester is used for power transformer with voltage grade of 6kV and above and other transformers with special purpose.

Tester host is used to receive test commands issued by the test notebook, and send the test results back to the test notebook.

Advantage: Fast test speed, high frequency accuracy


Product Detail

Product Tags

China Professional Manufacturer Sfra Analyzer Transformer Sweep Frequency Response Test Equipment

The power transformer is inevitably vulnerable to impulse of various fault short-circuit current or physical collision in the process of operation and transportation and the transformer windings may lose stability under the powerful electro-dynamic force exerted by such short-circuit current, which could result in permanent deformations such as local distortion, swell or dislocation and will severely affect safe operation of the transformer.

750-3
750-1
750-4

Technical parameters or this Sweep Frequency Response Analyzer

Product Name Sweep Frequency Response Analyzer
Measuring speed 1 - 2 minutes for single-phase winding
Measuring dynamic range -100dB~20dB
Output voltage Vpp-25V, Automatic Adjustable
Output impedance 50Ω
Measuring speed 1 min- 2 min for single-phase winding.
Output voltage Vpp-25V, adjusting automatically in test.
Output impedance 50Ω
Input impedance 1MΩ (the response channel is built with 50Ω matching resistance)
Frequency sweep scope 10Hz-2MHz
Frequency accuracy 0.00%
Frequency sweep manner linear or logarithmic, frequency sweep interval and number of sweep points are freely settable
Curve display Mag-freq. curve
Measuring dynamic range -100dB~20dB
Power supply AC100-240V 50/60Hz
Net weight 3.6kg

Main Technical Characteristics about the Transformer Winding Deformation Analyzer

1. Characteristics of transformer windings are measured with frequency sweep method. Deformations of windings such as distortion, swell or displacement of 6kV and above transformer are measured by detecting amplitude-frequency response characteristics of each winding, not requiring lifting of transformer enclosure or disintegration.

2. Quick measuring, measuring of a single winding is within 2 minutes.

3. High frequency accuracy, higher than 0.001%.

4. Digital frequency synthesis, with higher frequency stability.

5. 5000V voltage isolation fully protects safety of the testing computer.

6. Able to load 9 curves at the same time and automatically calculate parameters of each curve and diagnose winding deformations to provide the reference diagnosis conclusion.

7. Analysis software has powerful functions and software and hardware indicators satisfy national standard DL/T911-2016/IEC60076-18.

8. Software management is humanized with high degree of intelligence. You only need to click one key to complete all measurements after setting of parameters.

9. The software interface is concise and vivid, with clear menus of analysis, save, report export, print, etc.
